Coherent Shows 3.2T Pluggable and 6.4T NPO Architectures

Two routes to more bandwidth

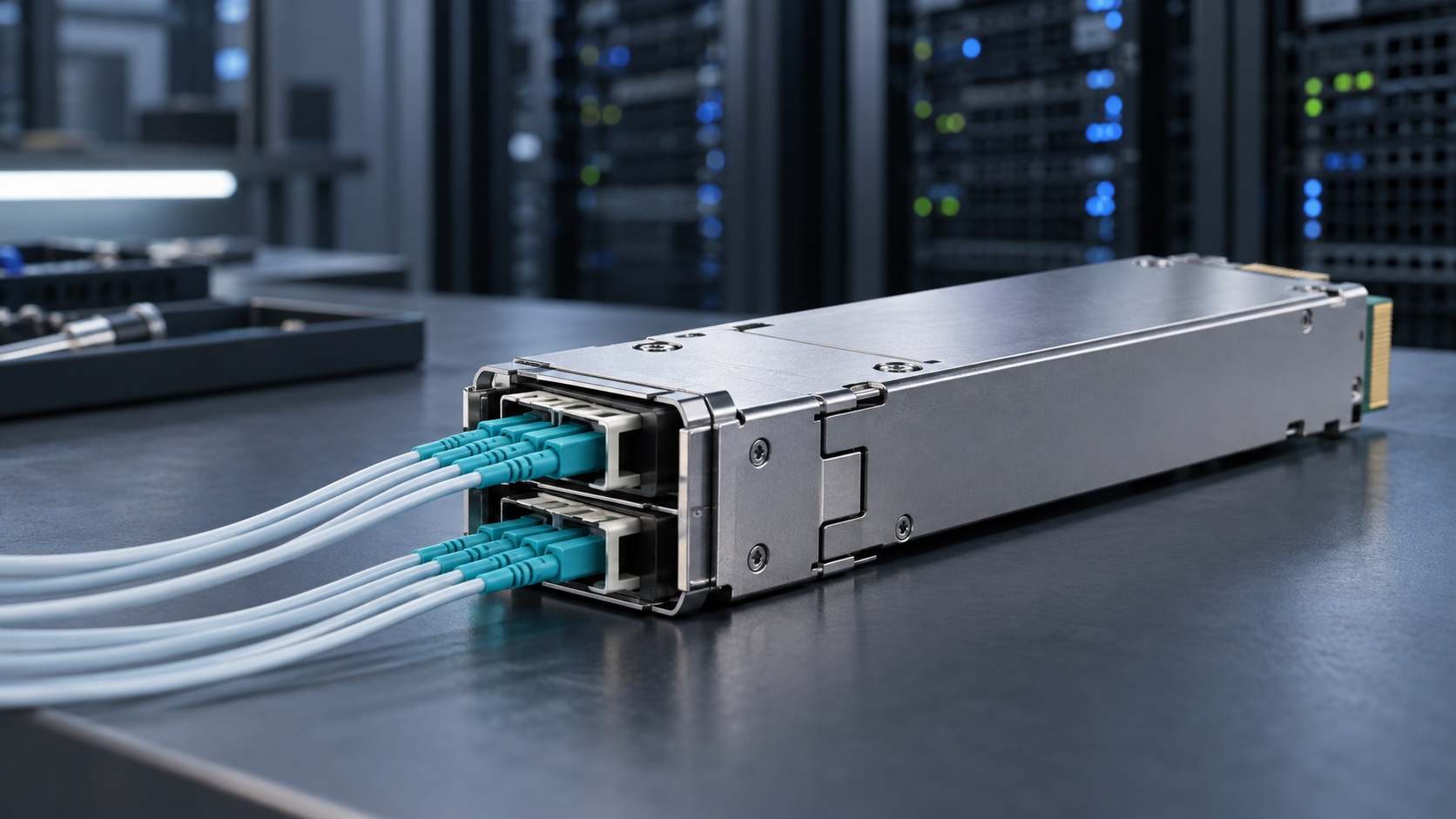

Coherent demonstrated a 3.2T 2xDR4 architecture in an OSFP-size package with eight 425G PAM4 optical lanes. The company also showed a 6.4T near-packaged-optics engine combining silicon photonics, fiber attach, external-laser modules and related integration technology.

A pluggable format preserves familiar front-panel replacement and qualification processes, but power and signal integrity become harder at higher lane rates. NPO moves the optical engine closer to switch silicon while retaining more service separation than fully co-packaged optics.

Design teams should compare connector density, fiber routing, laser redundancy, host electrical reach, cooling and repair procedures. A compact demonstration must still become a repeatable manufacturing flow with stable coupling loss and production test coverage.

The parallel demonstrations suggest there may be no single post-1.6T form factor. Pluggable, NPO and CPO designs can coexist, with deployment determined by bandwidth density, power, serviceability and ecosystem readiness.

Architecture and system boundaries

The significance of Coherent Shows 3.2T Pluggable and 6.4T NPO Architectures becomes clearer when it is evaluated as part of a complete link rather than as an isolated component. A dual-path 3.2T OSFP-size concept and a 6.4T near-packaged optical engine highlight the packaging choices emerging beyond 1.6T. A production design must account for the host SerDes, electrical channel, optical engine, connector, fiber plant, receiver and forward-error-correction behavior as one system. Improvements in one block can be lost through extra insertion loss, retiming power or thermal constraints elsewhere. Engineering teams should therefore document the intended reach, lane configuration, modulation, fiber type and environmental limits before comparing solutions. This boundary definition also prevents a laboratory demonstration, a reference design and a qualified product from being treated as equivalent stages of maturity.

Bandwidth density is valuable only when the surrounding platform can power and cool it reliably. Module or engine power should be measured at realistic traffic loads and temperatures, including the laser source, control electronics and any host-side retimers. Designers also need to consider airflow obstruction, heat-sink pressure, neighboring-port population and the effect of a failed fan or elevated inlet temperature. A lower headline wattage may not reduce facility power if it requires additional cooling or signal conditioning. Useful comparisons therefore include watts per transported bit, ports per rack unit, cooling margin and the number of fibers or connectors required for the same aggregate capacity.

A credible qualification plan combines electrical, optical, mechanical and software tests. It should cover transmitter quality, receiver sensitivity, stressed input tolerance, FEC margin, link startup, repeated hot insertion, temperature cycling and long-duration traffic. Multi-vendor testing is especially important when the host, module, cable assembly and management software come from different suppliers. Operators should record firmware versions and test limits so that later substitutions can be assessed against the same baseline. Compliance with a form factor or interface specification is necessary, but it does not guarantee that every host and optical implementation will deliver identical margin under real deployment conditions.

Operations and failure isolation

High-speed optics must be diagnosable after installation, not only during laboratory acceptance. Telemetry should expose temperature, supply voltage, transmit and receive power, lane alarms, FEC counters and relevant laser or DSP status through tools already used by the network team. Thresholds need to distinguish gradual degradation from immediate service risk. Documentation should explain how to isolate a dirty connector, damaged fiber, weak transmitter, marginal host channel or firmware mismatch without replacing multiple parts at once. Spare strategy and mean time to repair also matter: a dense architecture can save power and space yet increase outage duration if the failed optical element is difficult to access or replace.

Moving from a demonstration to repeatable volume production requires stable wafer processes, optical alignment, packaging, calibration and automated test. Buyers should ask whether quoted performance represents typical devices, selected samples or guaranteed production limits. Yield at the final assembly level can differ greatly from individual component yield because tolerances accumulate across lasers, photonic dies, fiber attach and electronics. Capacity claims should be reviewed together with qualified manufacturing locations, lead times, second-source options and change-control procedures. Traceability from finished module to critical components helps contain field issues and makes it easier to evaluate whether a design revision requires renewed system qualification.

Purchase price alone is an incomplete measure for a new optical architecture. A useful total-cost model includes switch ports, optics, fiber and patching, power, cooling, spares, installation time, test equipment and expected replacement labor. It should also reflect utilization: a higher-capacity link can be economical when traffic can fill it, but may strand capital when deployed too early. Contracts should separate sample specifications from production guarantees and define acceptance criteria, warranty handling and notification of material or firmware changes. Where the ecosystem is still developing, staged orders and interoperability gates can reduce risk while preserving access to supply.

Official source

Official source: https://www.coherent.com/news/press-releases/showcases-optical-innovations-scale-ai-infrastructure-ecoc-2026

Goilips summarizes the official announcement and adds industry analysis. Verify availability, specifications and qualification status before procurement.
