Goilips 10G/50G PON Gigabit Fixed Broadband Access Solution

Overview

As dual-gigabit network deployment accelerates and services such as 8K video, whole-home WiFi 6/7 (FTTR), cloud desktop, VR/AR, and smart home applications grow rapidly, traditional GPON/EPON networks can no longer meet user demand for ultra-high bandwidth and very low latency.

Fixed broadband is moving broadly to 10G PON (XG-PON / XGS-PON) and accelerating toward next-generation 50G PON. In optical distribution networks (ODN), splitter loss is the key bottleneck limiting transmission reach and household coverage.

This solution uses the full Goilips XG-PON / XGS-PON and 50G-PON OLT & ONU optical module portfolio with Class C+ high optical power budget technology. It enables smooth upgrades from gigabit access to 10-gigabit experience without changing existing ODN fiber infrastructure.

Applications

FTTH / FTTR

For high-density residential areas and premium villa communities, delivering 1G to 10Gbps high-quality symmetric or asymmetric broadband and whole-home fiber coverage.

FTTB / FTTC

For legacy community renovation and high-density apartments, using high-split-ratio OLT modules to reach corridor MDUs and then convert to Ethernet or fiber access for users.

Campus / Enterprise POL

For smart campuses, hospitals, schools, hotels, and similar scenarios requiring reliable, flat, and easy-to-maintain enterprise PON networking.

Deployment & Architecture

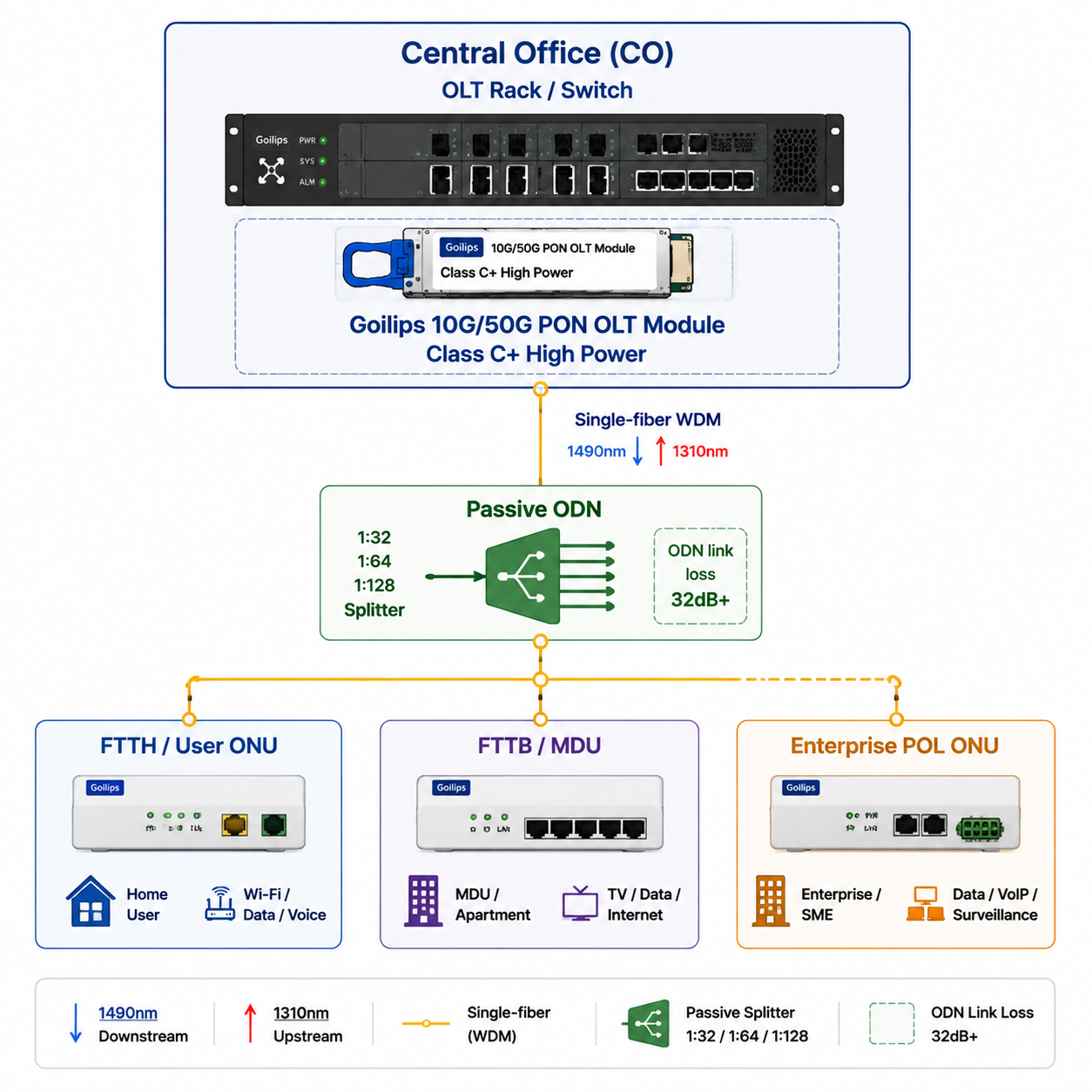

Between central-office OLT equipment and customer-premises ONU/ONT devices, the network uses a fully passive ODN. Goilips high-power Class C+ OLT modules support large split ratios up to 1:64 / 1:128.

Goilips 10G/50G PON Gigabit Fixed Broadband Access Solution

10G XG-PON

Core Deployment：10Gbps downstream / 2.5Gbps upstream using XG-PON OLT N2 / C+ and ONU modules.

Advantage：Class C+ 32dB optical budget supports 20km reach with 1:64 split ratios for gigabit-to-10G broadband upgrades.

10G XGS-PON

Core Deployment：Symmetric 10Gbps downstream and upstream using XGS-PON OLT C+ and ONU modules.

Advantage：Supports 20km reach with 1:64 / 1:128 split ratios for high-value symmetric broadband and enterprise access.

50G-PON Evolution

Core Deployment：50Gbps downstream with 12.5G or 25G/50G upstream using 50G-PON Combo OLT and ONU modules.

Advantage：Class C+ 32dB+ optical budget enables next-generation access upgrades while remaining compatible with existing ODN infrastructure.

Combo PON Coexistence

Core Deployment：Integrates GPON/10G PON or 10G/50G PON optical components with different wavelengths in one module.

Advantage：Allows legacy users and 10G/50G users to coexist on the same fiber plant without replacing splitters or rebuilding the ODN.

Key Benefits

1

Protect Existing ODN Assets

With Class C+ power margin and Combo PON technology, operators can upgrade to 10G/50G PON without relaying fiber or replacing splitters, saving more than 80% of access-network reconstruction investment.

2

Lower Per-Subscriber Build Cost

High split ratios such as 1:128 significantly increase the number of users covered by each OLT port, reducing average central-office equipment and port cost.

3

Premium Service Assurance and ARPU Growth

Low latency jitter and high bandwidth support value-added services such as cloud gaming, FTTR whole-home gigabit, and 8K live streaming, helping operators improve broadband ARPU.
