Goilips High-Density Fiber to the Desktop Solution for Smart Office Campuses

Overview

As enterprise digital transformation accelerates, Wi-Fi 6/7, 4K/8K video conferencing, and cloud desktops are driving rapid growth in campus bandwidth demand.

Traditional three-tier copper networks based on CAT 5e/6 face distance limits, 100-meter bottlenecks, large telecom-room footprint, cable aging, electromagnetic interference, and expensive upgrades. Replacing copper with fiber has become the natural direction for modern campus networks.

This solution uses Goilips 10G high-performance aggregation optical modules and highly cost-effective desktop SFP modules to build flattened Fiber to the Desktop (FTTD) / Passive Optical LAN (POL) networks, delivering a simple, green, secure, and 30-year-lifecycle 10G all-optical transport network for modern enterprise campuses.

Applications

Enterprise Headquarters and R&D Centers

For modern offices requiring high data confidentiality, 10G backbone, and gigabit/10G desktop access for cloud desktops, 3D modeling, rendering, and HD video meetings.

Smart Universities and Education Campuses

For dormitories, lecture halls, and digital libraries across large campuses with dense information points, breaking the 100-meter copper distance limit and enabling unified flattened management.

Smart Hospitals and Large Medical Institutions

Fiber's zero electromagnetic radiation and anti-interference properties are well suited to operating rooms, MRI rooms, and fast retrieval of large PACS medical image files.

Deployment & Architecture

In FTTD/POL architecture, the network is simplified from traditional three layers (core-aggregation-access) to two layers (core/OLT-terminal). Intermediate telecom rooms replace active switches with passive splitters or direct fiber patching.

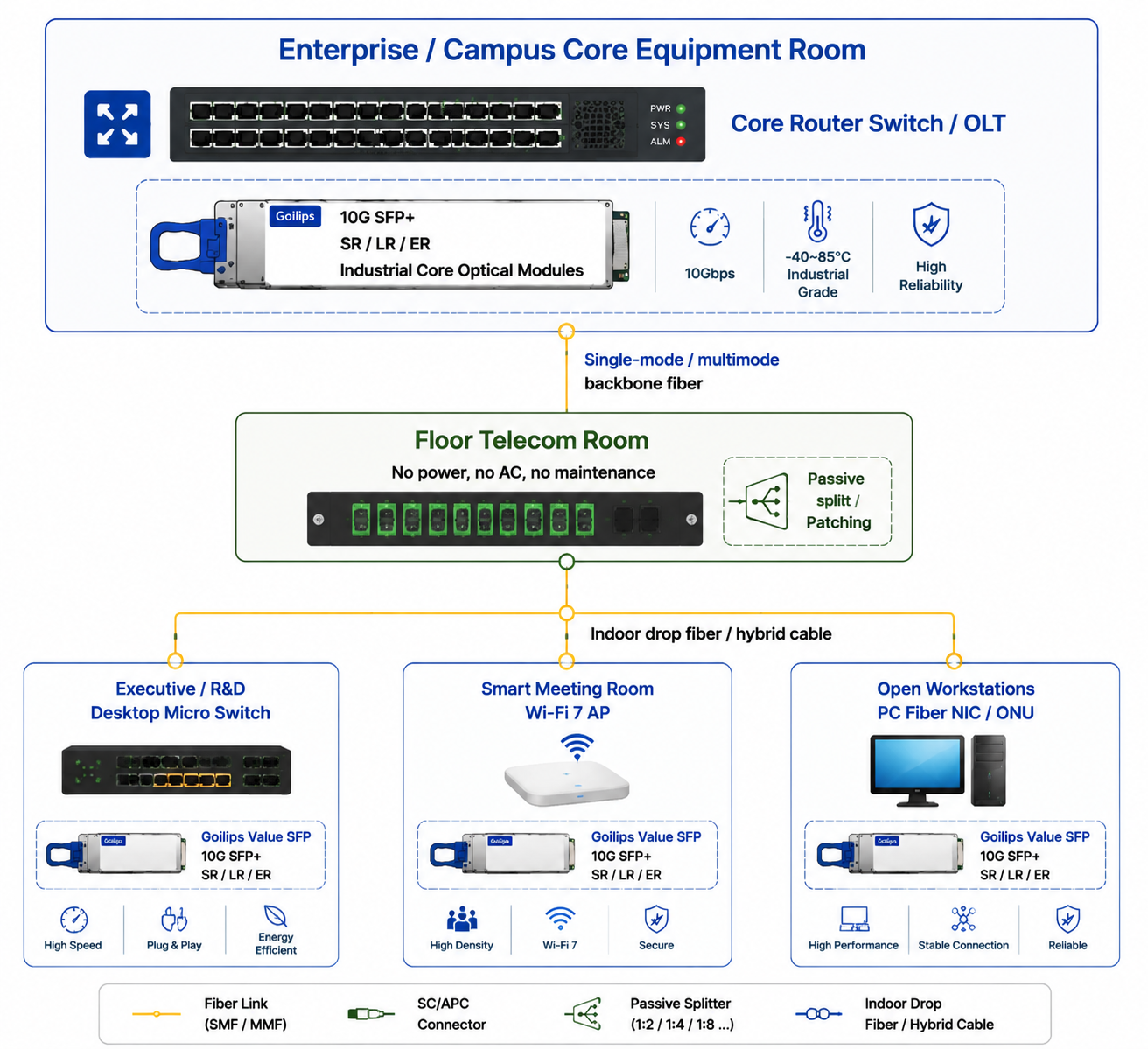

Goilips High-Density Fiber-to-the-Desktop (FTTD) Solution for Smart Office Campuses

Core Equipment Room 10G Downlink

Core Deployment：Goilips 10G SFP+ SR/LR modules using 850nm or 1310nm optics.

Advantage：High throughput and strong stability, supporting fully loaded high-density switch ports.

Desktop Terminal Access

Core Deployment：Goilips 1G/10G SFP modules matched to the front-end wavelength.

Advantage：Cost-effective desktop access, very low power consumption, hot-swappable operation, and compatibility with micro switches and fiber NICs.

Medical and Confidential Zones

Core Deployment：Goilips 1G/10G BiDi modules using single-fiber bidirectional transmission.

Advantage：Saves 50% indoor cabling space and provides physical-layer anti-eavesdropping advantages.

Passive Floor Distribution

Core Deployment：Replaces floor active switches with passive optical splitters or direct fiber patching.

Advantage：Eliminates floor power, UPS, air-conditioning, and routine active-equipment maintenance.

Key Benefits

Release High-Value Commercial Space

Thin drop fiber replaces bulky copper bundles. Floor telecom-room area can be reduced by 80% or even eliminated, turning space into additional desks or storage.

Simplified Operations and Lower OpEx

Network layers are reduced from three to two, lowering fault points. Centralized core-switch management enables remote one-click control and troubleshooting for hundreds or thousands of desktop endpoints.

Improved Digital Office Experience

Stable 10G backbone and gigabit-to-desktop access reduce network stalls and packet loss, improving code commits, large rendering transfers, and company-wide video meetings.
